    고정형 레이저센서 / AVS-104

    첨부파일


    목록으로

    본문

    Detail view

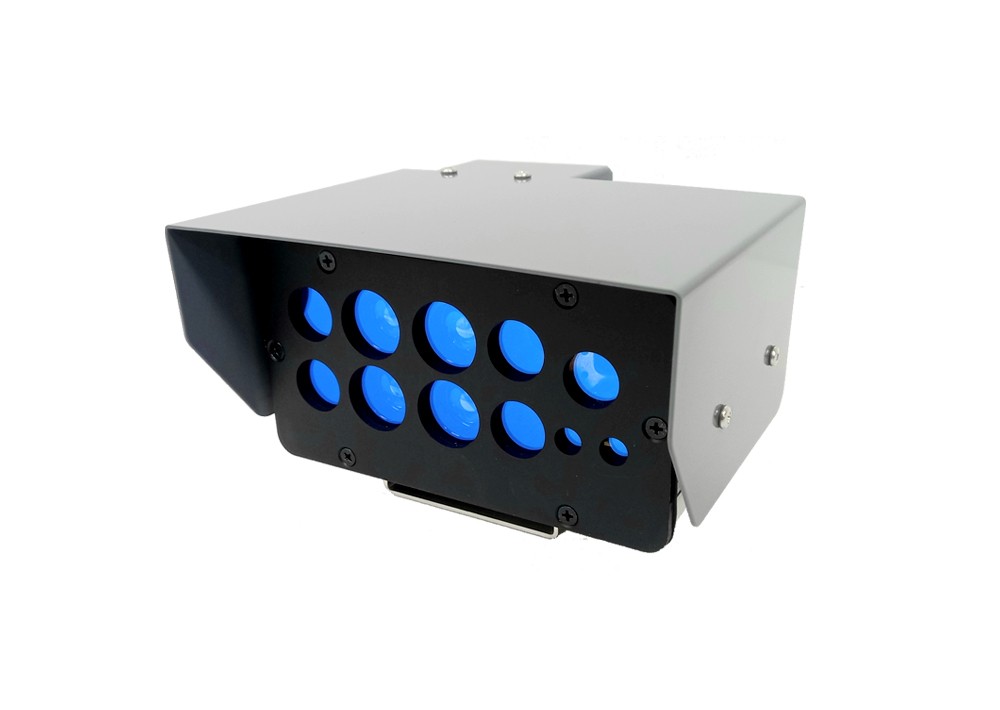

    • Model : AVS-104

    World-First 4 Laser Beam Speed Enforcement Device



    • Product Description & Key Features

    AVS-104 is an Advanced Vehicle Speed measurement laser equipment with the latest technology for the first time in the World. AVS-104 projects 4 laser beams on the road for wider detection and highly accurate speed measurement. The concept is that the device analyzes the time difference and distance profiling between the first and second beams, bringing the best speed measurement result. As AVS-104 also provides the detection signal without any time delay, it can be used to trigger the evidence picture taking at the right point. Furthermore AVS-104 provides excellent and steady performance by its own weather filter function. Scope device and laser pointer are provided for easy installation.

    · Programmable measurement range and operating mode.
    · Versatile, accurate, and fast operation for various detection applications.



    • Applications

    Speed enforcement, Vehicle detection and counting,  Traffic density control, Traffic information systems



    • Detailed Specifications

    Speed range

    10~250 km/h

    Speed accuracy

    ± 2 km/h

    Measurement range

    20m~25m

    Measurement direction

    Approaching, Departing

    Beam structure

    4 Beams (2,2)

    Beam divergence

    25mrad each

    Laser wavelength

    905nm

    Eye safety

    Class 1 ( IEC60825-1)

    Power

    12V, 2.5W

    Temperature range

    20~60°C

    Interface

    RS-232 or RS-485
