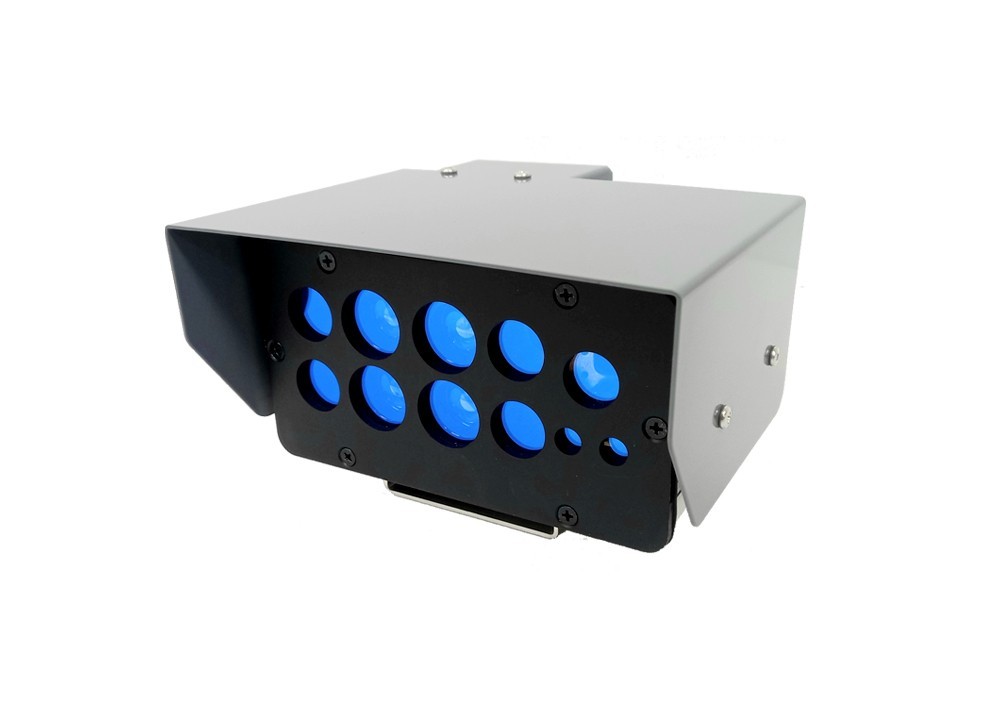

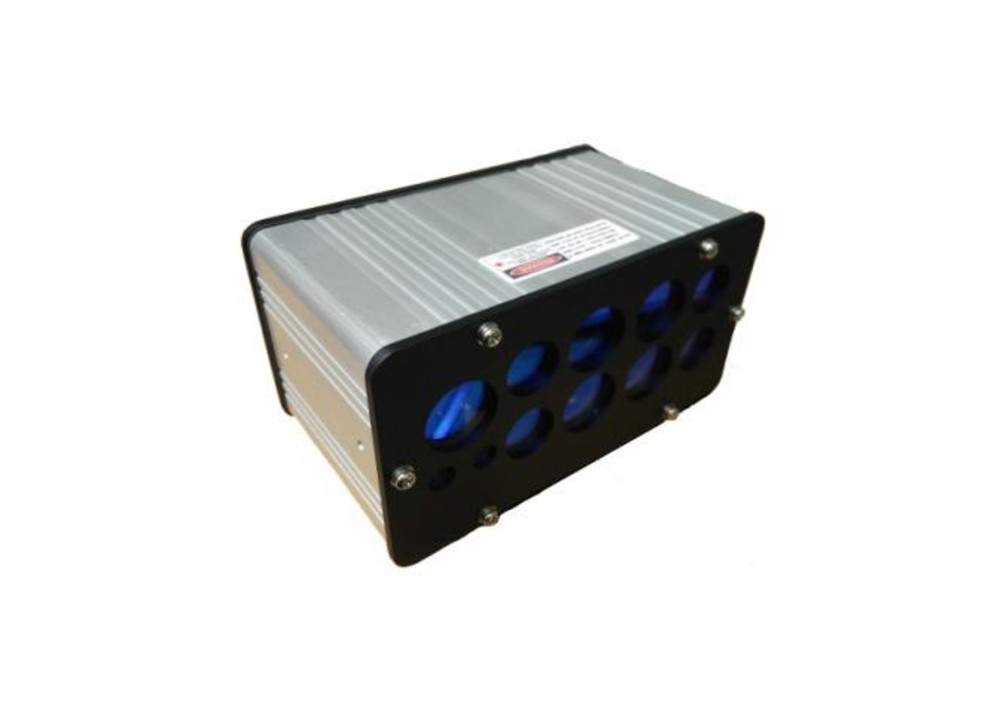

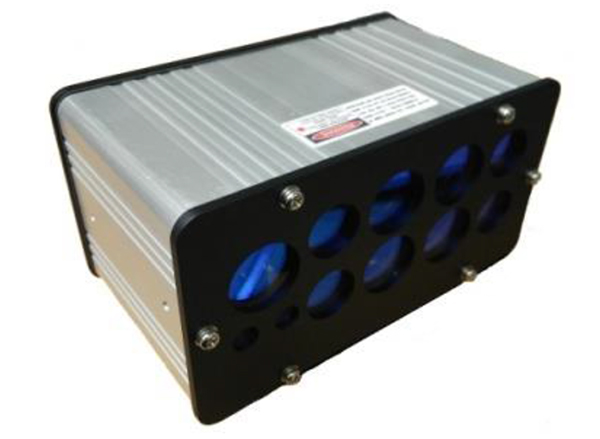

    고정형 레이저센서 / AVS-104(M)

    첨부파일


    목록으로

    본문

    Detail view
    • Model : AVS-104(M)

    4 Beam LASER Speed and Range Measurement





    • Product Description & Key Features

    AVS-104(M) is an Advanced Vehicle Speed measurement laser

    equipment with the latest technology for the first time in the World.

    AVS-104(M) provides 4 laser beaming on the road for wider detection

    and highly accurate speed measurement. The concept is that the

    device analyzes the time difference and distance profiling between the first and second beams, bringing the best speed measurement result.

    As AVS-104(M) also provides the detection signal without any time delay, it can be used to trigger the evidence picture taking at the right point. Furthermore AVS-104(M) provides excellent and steady performance by its own weather filter functioning. Scope device and laser pointer is Provided for easy installation.


    Applications : Speed enforcement, Vehicle detection and counting,    Traffic density control, Traffic information systems







    • Detailed Specifications

    Speed range

    10~250 km/h

    Speed accuracy

    ± 2 km/h

    Measurement range

    20m~25m

    Measurement direction

    Approaching, Departing

    Beam structure

    4 Beams (2,2)

    Beam divergence

    25mrad each

    Laser wavelength

    905nm

    Eye safety

    Class 1 ( IEC60825-1)

    Power

    12V, 2.5W

    Temperature range

    -40~60°C

    Interface

    RS-232 or RS-485




    Features

    ·  Programmable measurement range and operating mode.

    ·  Versatile, accurate, and fast operation for various detection applications.
